Fast. Clear. Permanent
UV Adhesives
Krystal™ UV adhesive is a One-Component, cure-on-demand, acrylic based UV adhesive that will polymerise almost instantly when in contact with UV light source. Krystal™ UV adhesives are designed to bond glass, clear acrylic, polycarbonate, and substrates that require fast setting with permanent fixturing. The versatility of Krystal™ UV adhesive allows it to be used in the most intricate and complex applications for bonding where high clarity and good strength are needed and where most other adhesives and sealants are not able to fulfill. The signage and furniture industry is a good case in point where optically cleared adhesives like Krystal™ UV adhesives are regularly used for bonding its bonding strength and aesthetic appeal when fully cured. With Krystal™ UV Adhesive, it is available in Low, Medium, and High viscosity to cater to different application flow demands.

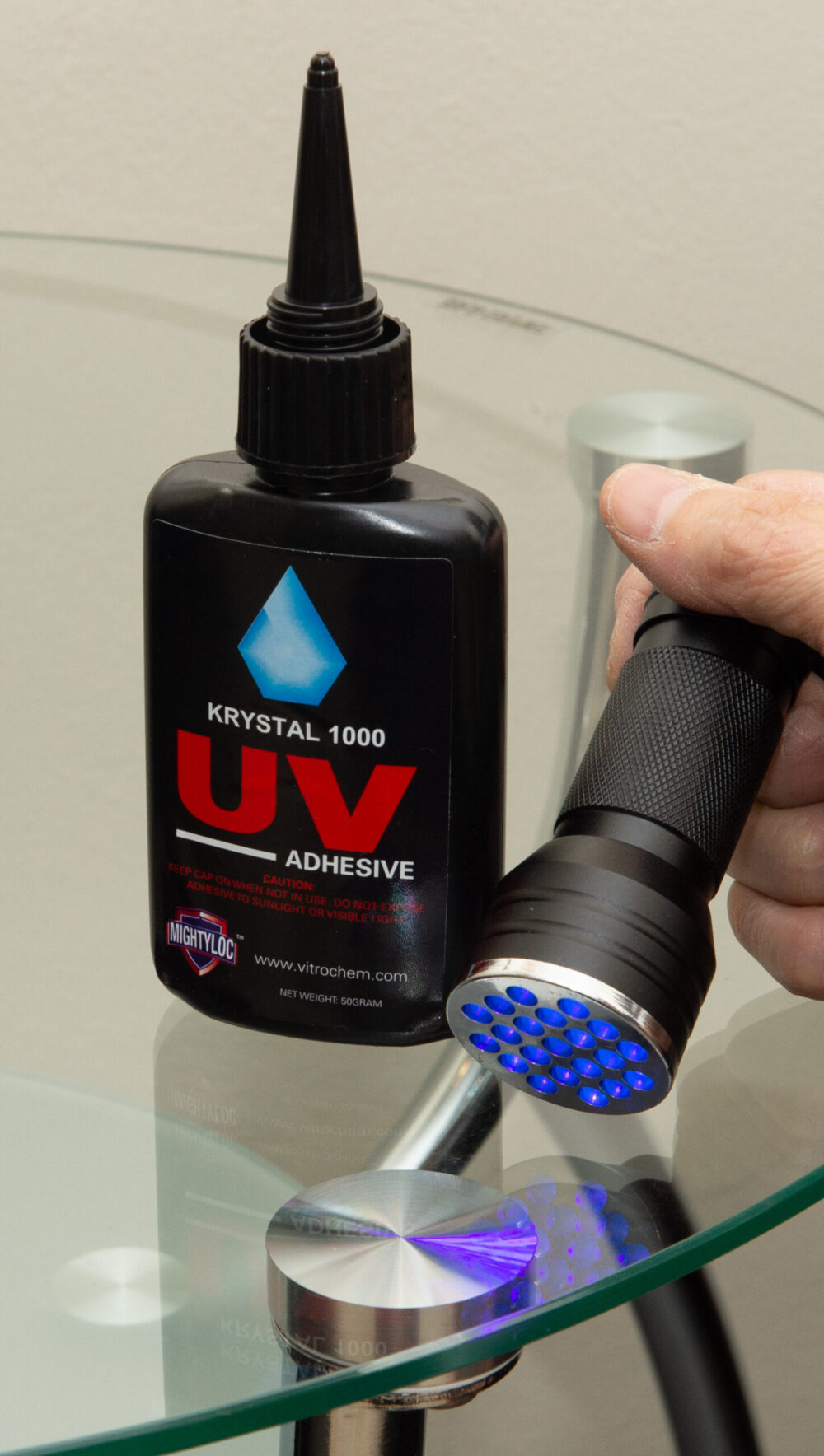

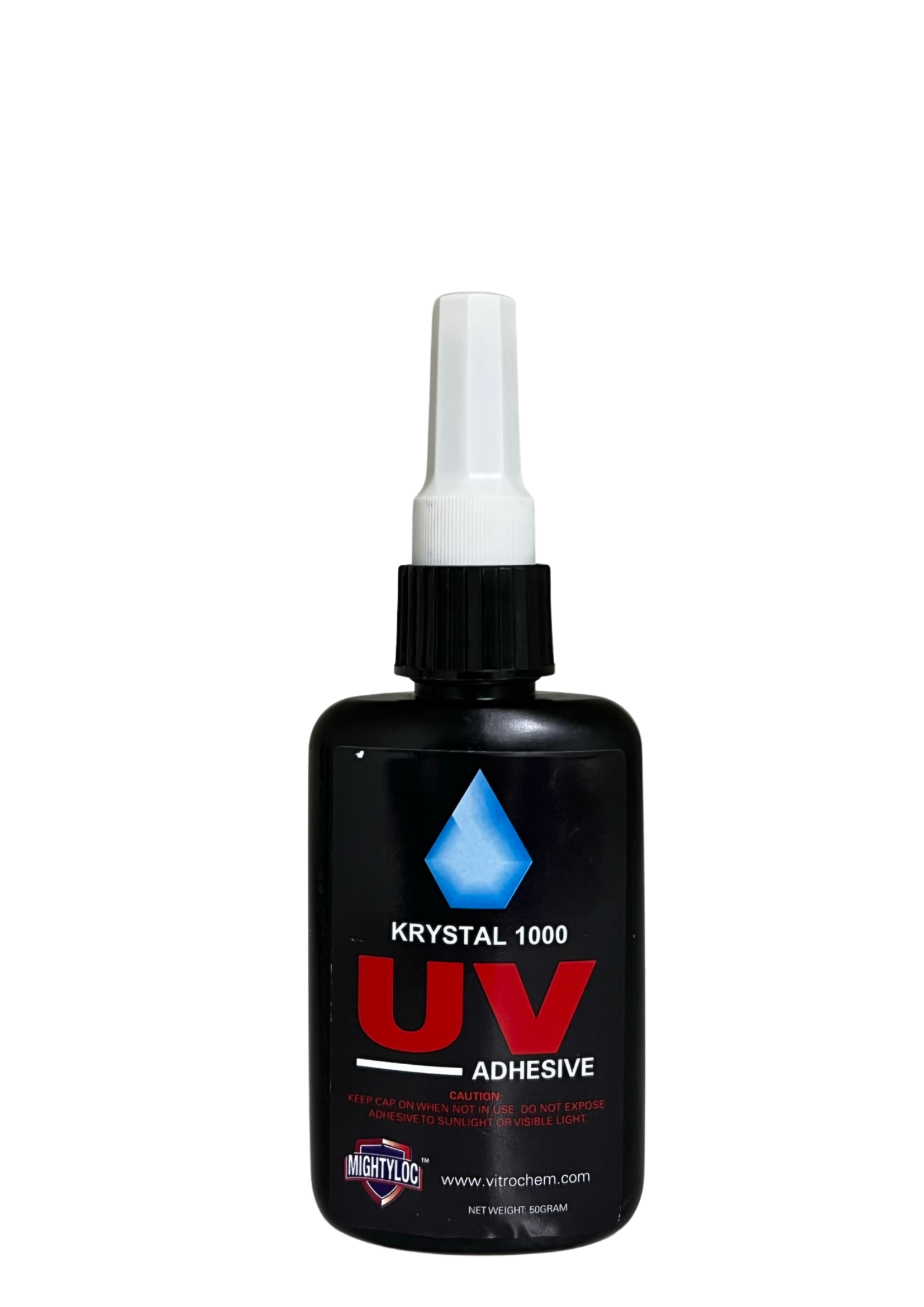

Krystal 1000 Medium Viscosity
Krystal™ 1000 is a One-Component medium viscosity, UV & visible light curable adhesive which is designed for bonding ABS, HIPS, PS, PC, PVC Acrylic, etc. This product is suitable for bonding applications that require high adhesion and clarity. It has excellent capillary action that will penetrate the tight joint surface with ease. This UV adhesive will polymerize under ultraviolet light (365nm) and cure within seconds when exposed to the correct UV light source and intensity.
Features
- 100% solvent free.
- UV & visible light cure.
- Cure-On-Demand.
- Less than 10 seconds curing.
- High clarity and transparency.
- Non-yellowing after curing.
- Bonds strongly to Glass, Clear Polycarbonate (Not Anti-UV type), Transparent Acrylate & PMMA.
- Minimal shrinkage
Specifications
- Chemical Properties: Acrylic Resin
- Appearance: Pale Yellow Liquid
- Viscosity, cps: 650-1050
- Hardness, Shore D: 65
- Refractive Index: 1.4825
- Tensile Strength, Kgf/cm²: 108
- Glass Transition, °C: -5
- Temperature Range: -40°C to 100°C
- UV Light Intensity,MJ/cm²: 1500 - 3000
- Wavelength: 365nm
- Recommended Cure Time, seconds: 5 - 10
Technical Data Sheet
Directions
- Wipe parts for bonding with a clean rag (preferably with IPA wipe) to remove any contaminants on the surface.
- Ensure that one part of the adherend is transparent.
- Apply sufficient adhesive quantity to cover the bonding area.
- Wipe off the excess adhesive on the bonding surface before UV light cure.
- Apply pressure to bonding substrates to dispel any trapped air for good transparency before curing.
- Shield uncapped bottle from light source whenever possible.
- Wipe dispensing nozzle clean after use.
- Store in a cool and dark environment.
Available Packaging in 50ML & 1 Litre PE Bottle
Krystal 2000 High Viscosity
Krystal™ 2000 is a One-Component, high viscosity, UV & visible light curable adhesive which is designed for bonding glass, acrylic, polycarbonate, ABS, and metals. It has the ability to cure rapidly when exposed to UV wavelength of 365nm or visible light at 436nm. When fully cured, Krystal™ 2000 provides excellent transparency and resists yellowing when applied for outdoor signages or glass decorations. With its fast set and cure ability, it is used across different applications where speed of fixturing is essential and yet gives high clarity and excellent bond strength.
Features
- 100% solvent free.
- UV & visible light cure.
- Cure-On-Demand.
- Less than 10 seconds curing.
- High clarity and transparency.
- Non-yellowing after curing.
- Good weather resistance.
- Good thermal and shock resistance.
- Bonds strongly to Glass, Clear Polycarbonate (Not Anti-UV type), Transparent Acrylate & Metals.
- Minimal shrinkage
Specifications
- Chemical Properties: Acrylic Resin
- Appearance: Clear Liquid
- Viscosity, cps: 5000 - 7000
- Hardness, Shore D: 67
- Refractive Index: 1.73
- Tensile Strength, Kgf/cm²: 108
- Glass Transition, °C: -16
- Temperature Range: -40°C to 120°C
- UV Light Intensity, MJ/cm²: 1500 - 3000
- Wavelength: 365nm
- Recommended Cure Time, seconds: 5 - 10
Technical Data Sheet
Directions
- Wipe parts for bonding with a clean rag (preferably with IPA wipe) to remove any contaminants on the surface.
- Ensure that one part of the adherend is transparent.
- Apply sufficient adhesive quantity to cover the bonding area.
- Wipe off the excess adhesive on the bonding surface before UV light cure.
- Apply pressure to bonding substrates to dispel any trapped air for good transparency before curing.
- Shield uncapped bottle from light source whenever possible.
- Wipe dispensing nozzle clean after use.
- Store in a cool and dark environment.
Available Packaging in 50ML & 1 Litre PE Bottle

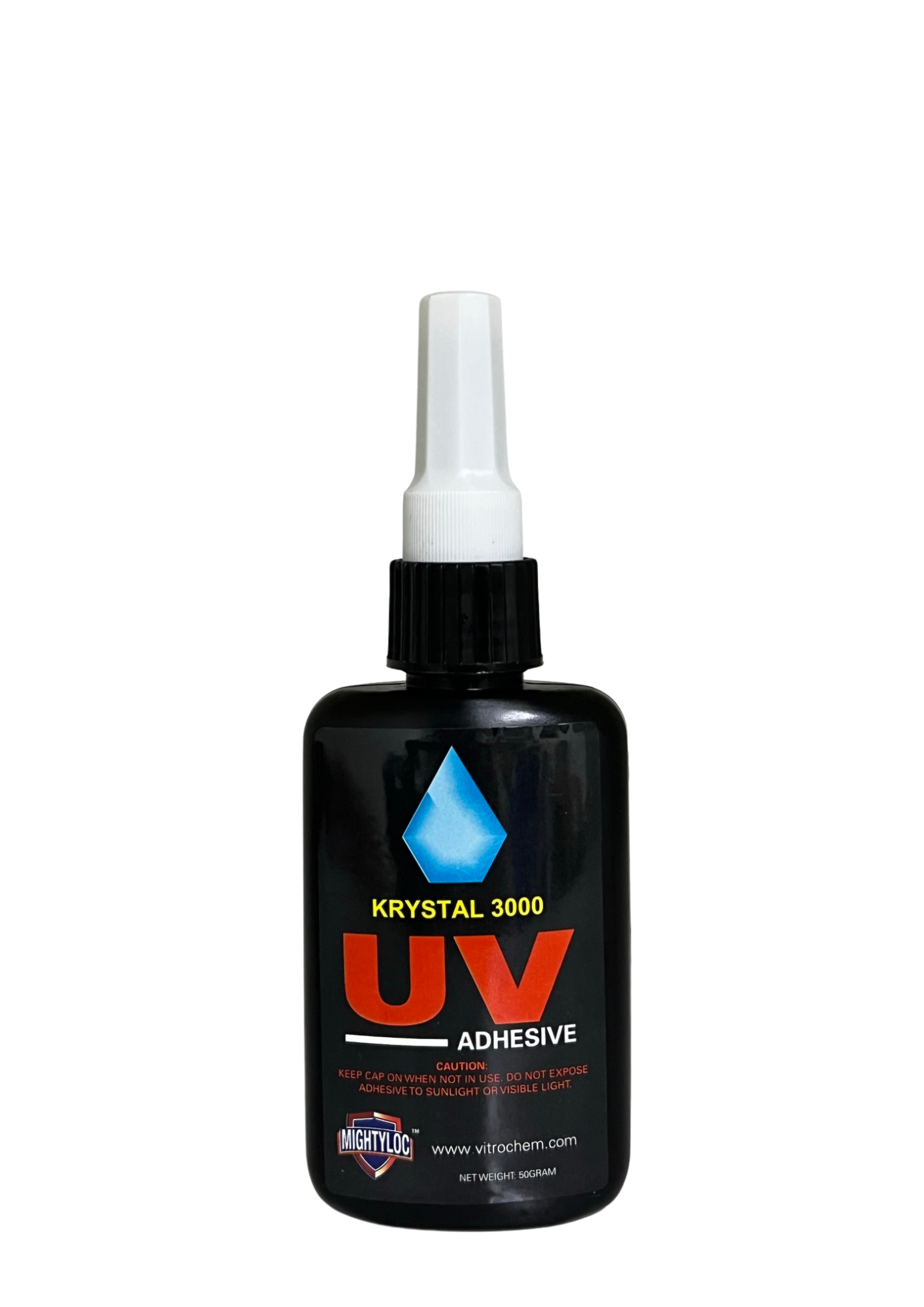

Krystal 3000 Low Viscosity
Krystal™ 3000 is a One-Component, low-viscosity, UV curable adhesive which is designed for bonding glass, acrylic, polycarbonate, ABS, and metals. It has the ability to cure rapidly when exposed to UV wavelength of 365nm or visible light at 436nm. When fully cured, Krystal™ 2000 provides excellent transparency and resists yellowing when applied for outdoor signages or glass decorations. With its fast set and cure ability, it is used across different applications where speed of fixturing is essential and yet gives high clarity and excellent bond strength.
Features
- 100% solvent free.
- UV & visible light cure.
- Cure-On-Demand.
- Less than 10 seconds curing.
- High clarity and transparency.
- Non-yellowing after curing.
- Good weather resistance.
- Good thermal and shock resistance.
- Bonds strongly to Glass, Clear Polycarbonate (Not Anti-UV type), Transparent Acrylic & Metals.
- Minimal shrinkage
Specifications
- Chemical Properties: Acrylic Resin
- Appearance: Clear Liquid
- Viscosity, cps: 5-15
- Hardness, Shore D: 64
- Refractive Index: 1.4769
- Tensile Strength, Kgf/cm²: 108
- Elongation, %: 228
- Glass Transition, °C: -10
- Temperature Range: -40°C to 100°C
- UV Light Intensity,MJ/cm²: 1500 - 3000
- Wavelength: 365nm
- Recommended Cure Time, seconds: 5 - 10
Technical Data Sheet
Directions
- Wipe parts for bonding with a clean rag (preferably with IPA wipe) to remove any contaminants on the surface.
- Ensure that one part of the adherend is transparent.
- Apply sufficient adhesive quantity to cover the bonding area.
- Wipe off the excess adhesive on the bonding surface before UV light cure.
- Apply pressure to bonding substrates to dispel any trapped air for good transparency before curing.
- Shield uncapped bottle from light source whenever possible.
- Wipe dispensing nozzle clean after use.
- Store in a cool and dark environment.
Available Packaging in 50ML & 1 Litre PE Bottle
Applications
Bonding of glass to glass for trophies assembly.
Glass Trophies
Clear & Polycarbonate sign bonding using UV adhesives.
Signage
Bonding glass top to metal frame
Glass Furniture
Bonding glass ornamentals for decoration.
